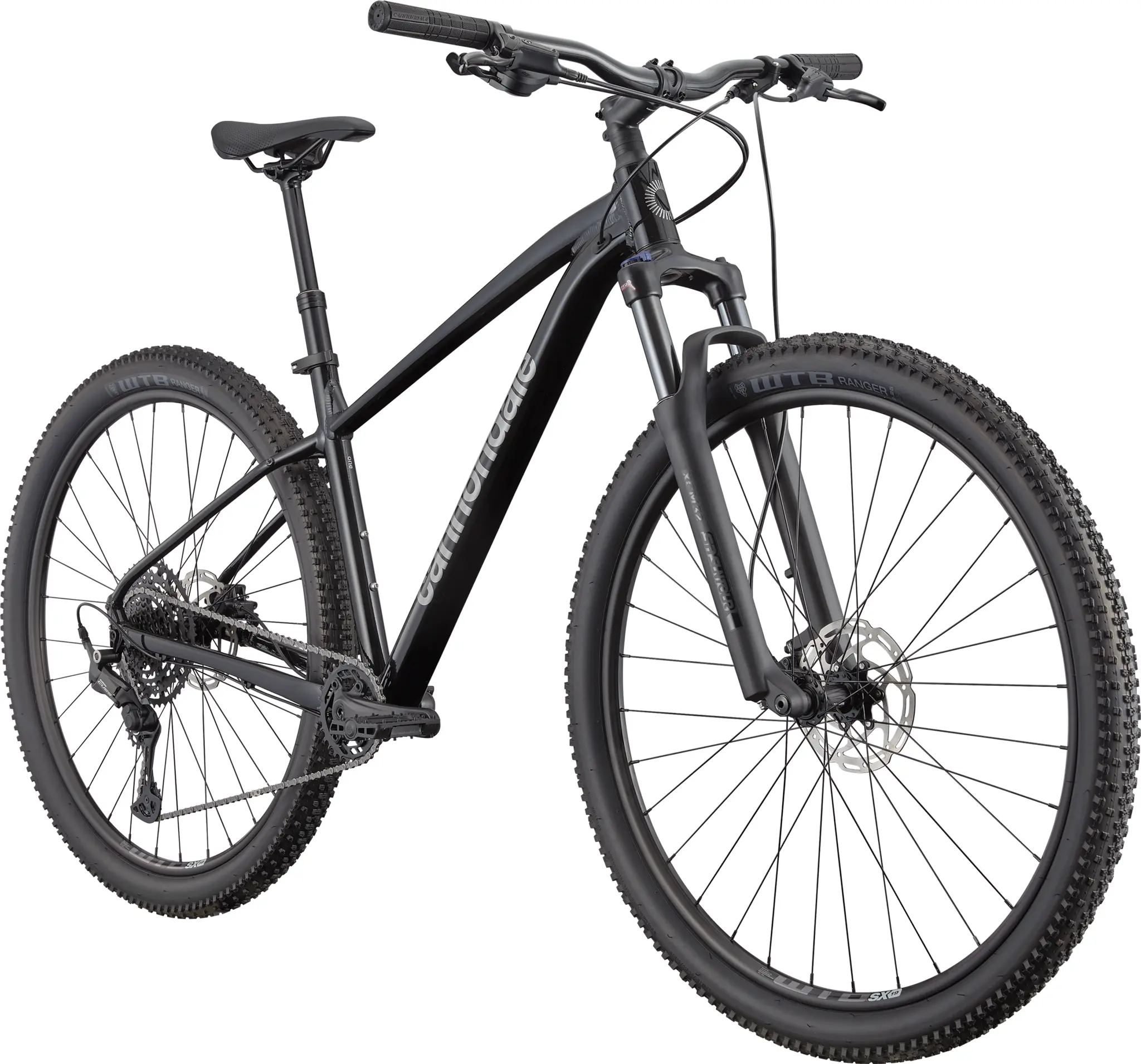

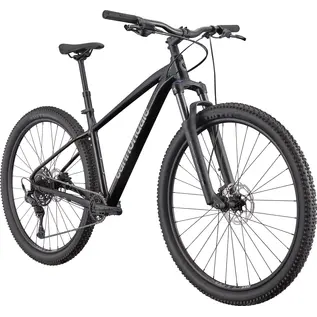

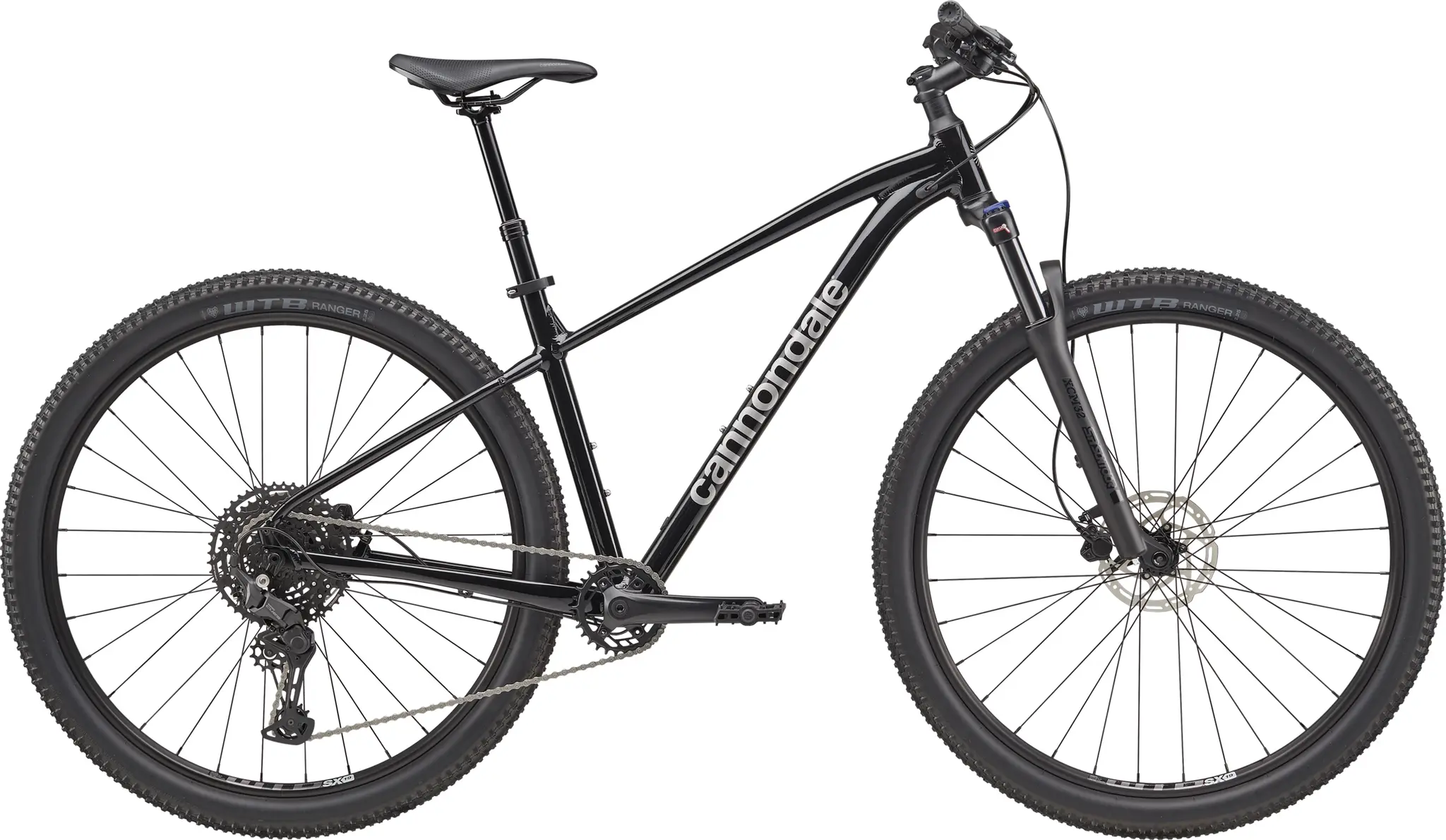

Cannondale Trail 1

Home / Cannondale Trail 1

Aluminum frame with modern trail geometry; 29" wheels for momentum and obstacle rollover; 120mm fork smooths rough trails; 12-speed 1x drivetrain for simple wide-range gearing; hydraulic disc brakes for confident stops; agile and upgrade-friendly.

$999.99 Excl. tax

Information

Quantity:

Frame
Trail, SmartForm C3 Alloy, 142x12mm, SAVE, 1-1/8" headtube, post mount disc, StraightShot internal cable routing, dropper post compatible, KickFlip hidden 18mm 2-bolt kickstand mount port, BSA-73, 27.5" wheels (XS, S) / 29" wheels (M, L, XL)
Fork
SR Suntour XCM Boost, coil, 100mm travel, 46mm offset (29"), 80mm travel, 42mm offset (27.5")
Headset
Semi-Integrated, 1-1/8"

Drivetrain

Rear Derailleur
Shimano CUES U6000
Shifters
Shimano CUES U6000, 10-speed
Chain
KMC X10, 10-speed
Crank
Prowheel, Charm 30T
Rear Cogs
Shimano CUES, 11-48, 10-speed
Bottom Bracket
ProWheel, square taper

Brakes

Brakes
Tektro M275 hydraulic disc, 160/160mm rotors
Brake Levers
Tektro hydraulic disc

Wheels

Front Hub
Shimano TC500, 15x110mm
Rear Hub
Shimano TC500, 12x142mm
Rims
WTB SX19, 32h
Spokes
Stainless Steel, 14g
Tire Size
2.25
Wheel Size
27.5/29
Tires
Trail Boss 27.5x2.25" (XS,S) / 29x2.25" (M, L, XL) Comp, 30 TPI

Components

Handlebar
Cannondale Riser, 6061 Alloy, 25mm rise, 8° sweep, 6° rise, 720mm
Stem
Cannondale 4, 6061 Alloy, 31.8, 6°
Grips
Cannondale
Saddle
Cannondale Trail
Seatpost
JD Dropper, internal routing, 31.6, 130mm
