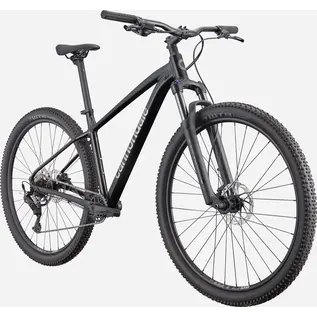

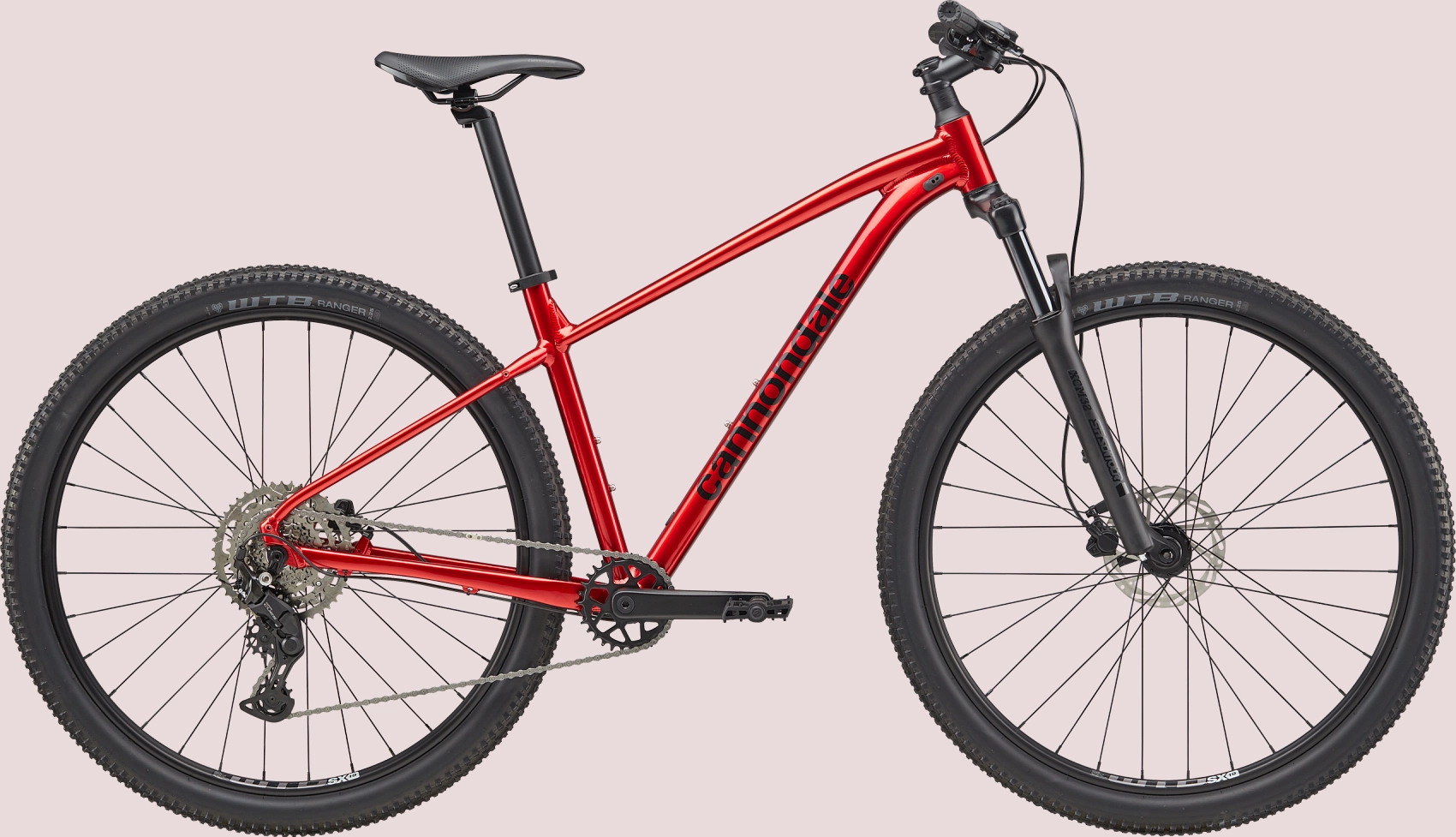

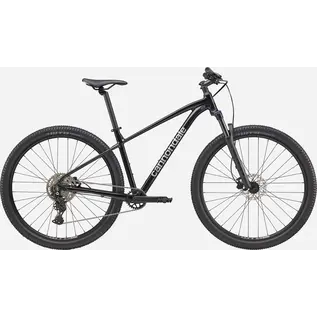

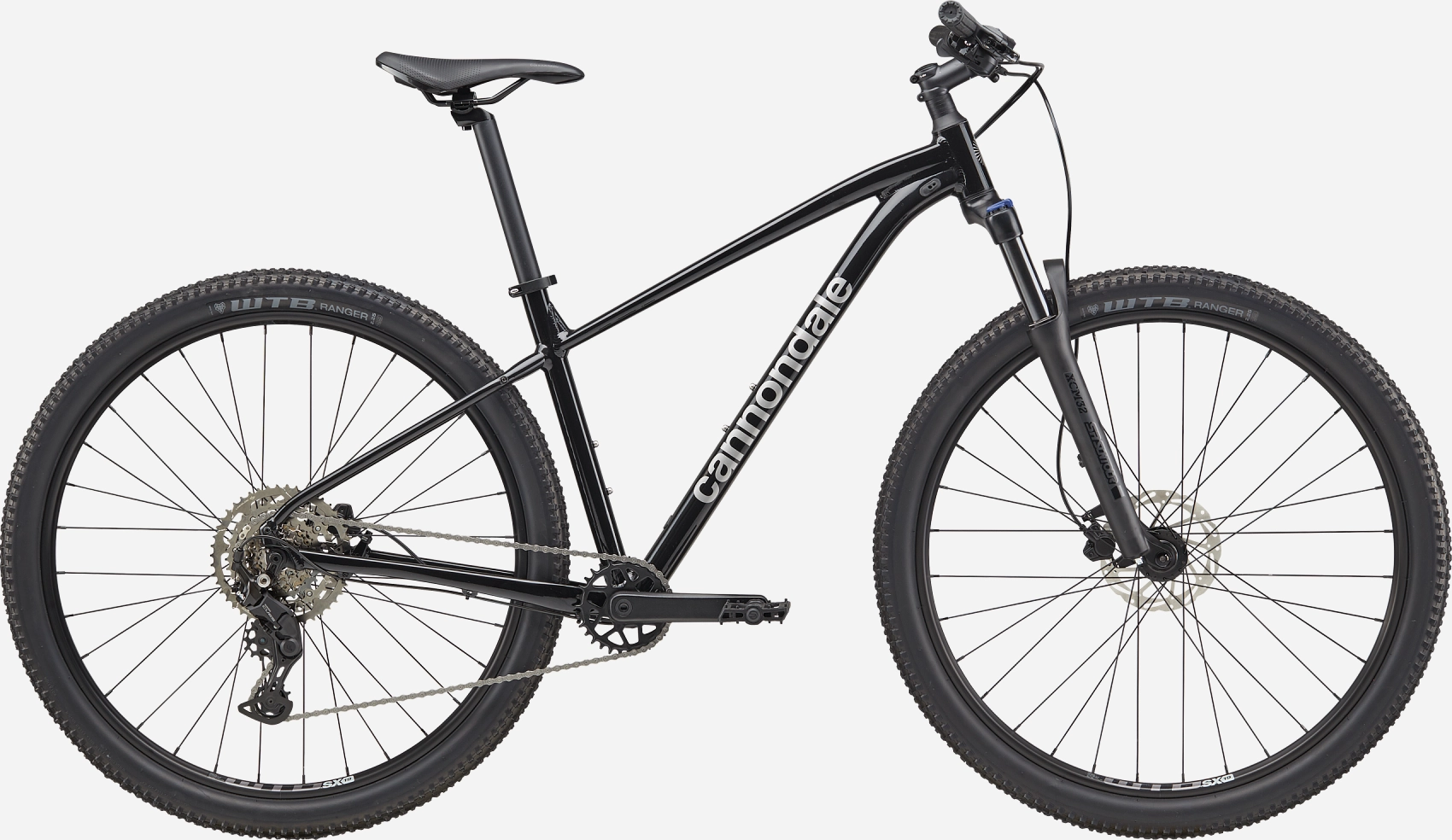

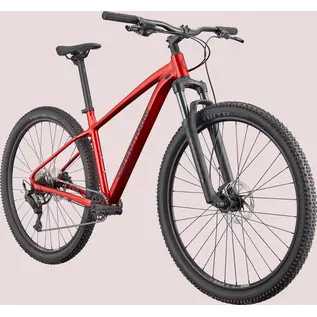

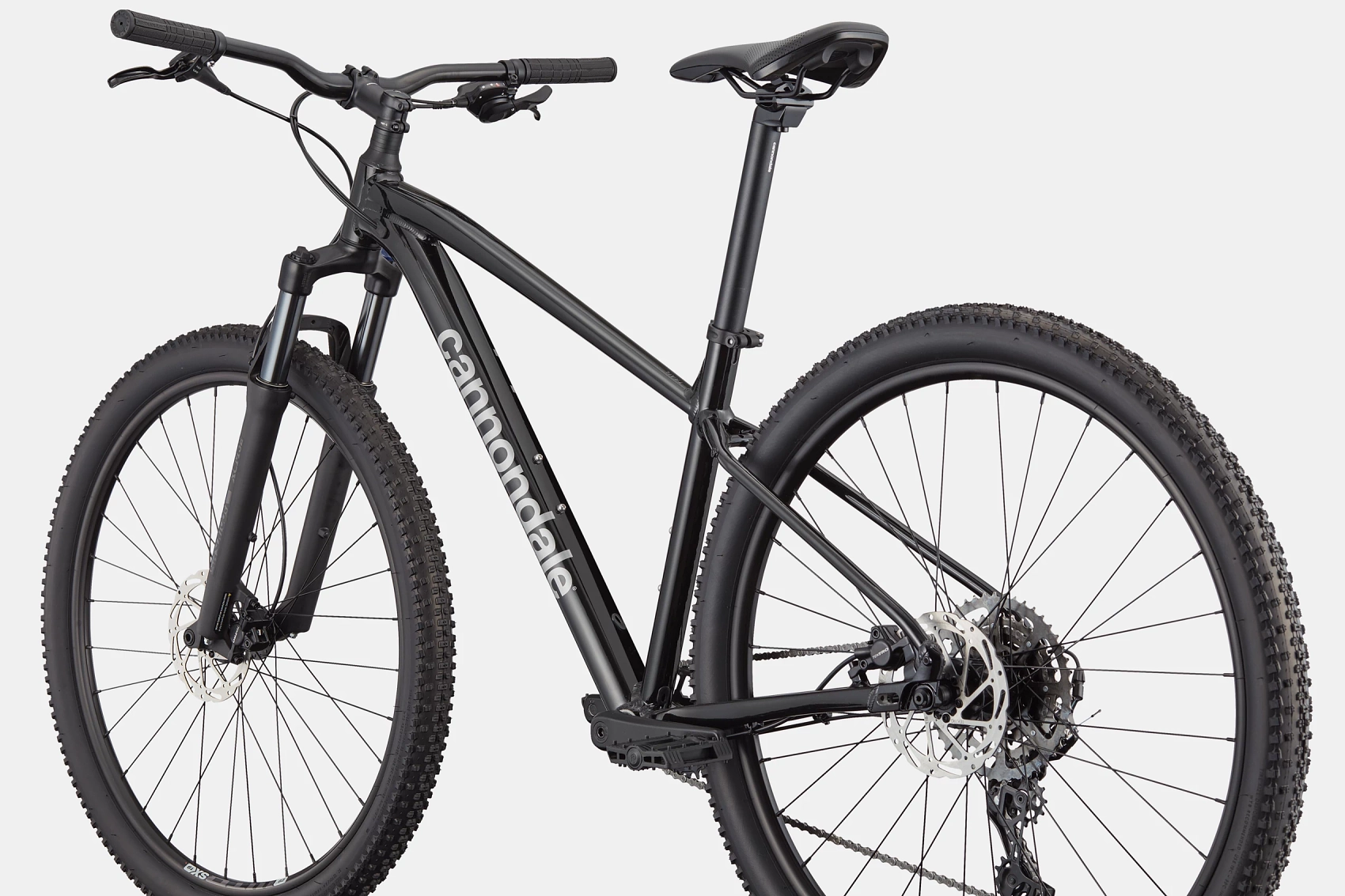

Cannondale Trail 2

Home / Components and Parts / Wheels and Parts / Hubs / Axles/Parts / Thru-Axles / Cannondale Trail 2

Time to Level Up!
The Cannondale Trail is your first-class upgrade to next-level mountain biking—engineered for fun by a brand trusted by Champions.

Cannondale Cannondale Trail 2 Cannondale Cannondale Trail 2 Cannondale Cannondale Trail 2 Cannondale Cannondale Trail 2 Cannondale Cannondale Trail 2 Cannondale Cannondale Trail 2 Cannondale Cannondale Trail 2 Cannondale Cannondale Trail 2
Cannondale Cannondale Trail 2
Cannondale Cannondale Trail 2
Cannondale Cannondale Trail 2
Cannondale Cannondale Trail 2
Cannondale Cannondale Trail 2
Cannondale Cannondale Trail 2
Cannondale Cannondale Trail 2
Cannondale Cannondale Trail 2
$749.99 Excl. tax
+ -
Add to cart
Quantity: 1
  • A lightweight, durable SmartForm C3 Alloy frame
  • 29” wheels on the larger sizes, 27.5” wheels on XS and Small for the best blend of fit and speed
  • Bump-eating SR Suntour XCM35 Boost fork with 100mm of travel (80mm on XS and Small sizes)
  • Shimano CUES U4000 9-speed shifting - wide range gearing with the simplicity of a single front chainring
  • A hidden kickstand mount, plus mounts for a rack and fenders, offer true do-it-all versatility

Specs

Frameset

  • Frame
    Trail, SmartForm C3 Alloy, 142x12mm, SAVE, 1-1/8" headtube, post mount disc, StraightShot internal cable routing, dropper post compatible, KickFlip hidden 18mm 2-bolt kickstand mount, BSA-73, 27.5" wheels (XS, S) / 29" wheels (M, L, XL)
  • Fork
    SR Suntour XCM Boost, coil, 100mm travel, 46mm offset (29"), 80mm travel, 42mm offset (27.5")
  • Headset
    Semi-Integrated, 1-1/8"

Drivetrain

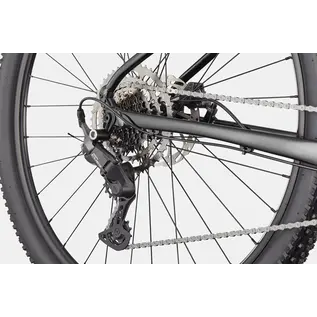

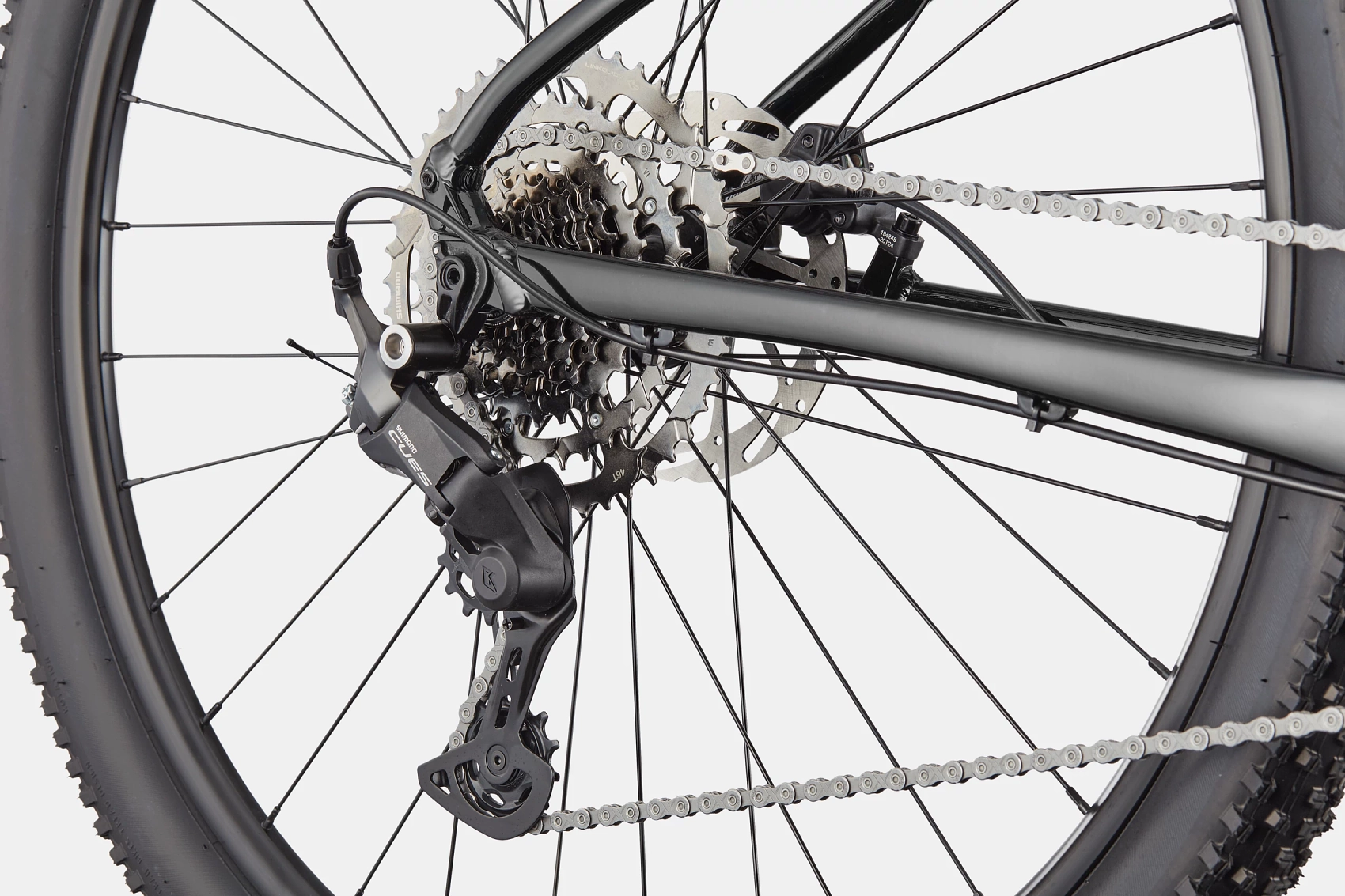

  • Rear Derailleur
    Shimano CUES U4000
  • Shifters
    Shimano CUES U4000, 9-speed
  • Chain
    KMC X9, 9-speed
  • Crank
    Prowheel, Charm 30T
  • Rear Cogs
    Shimano CUES, 11-46, 9-speed
  • Bottom Bracket
    ProWheel, square taper

Brakes

  • Brakes
    Tektro M275 hydraulic disc, 160/160mm rotors
  • Brake Levers
    Tektro hydraulic disc

Wheels

  • Front Hub
    Formula DC-51, 15x100mm
  • Rear Hub
    Formula DC-1422, 12x142mm
  • Rims
    WTB SX19, 32h
  • Spokes
    Stainless Steel, 14g
  • Tire Size
    2.25
  • Wheel Size
    27.5/29
  • Tires
    WTB Ranger, 27.5x2.25" (XS, S) / 29x2.25" (M, L, XL)
  • Front Tire
    WTB Ranger, 27.5x2.25" (XS, S) / 29x2.25" (M, L, XL)
  • Rear Tire
    WTB Ranger, 27.5x2.25" (XS, S) / 29x2.25" (M, L, XL)

Components

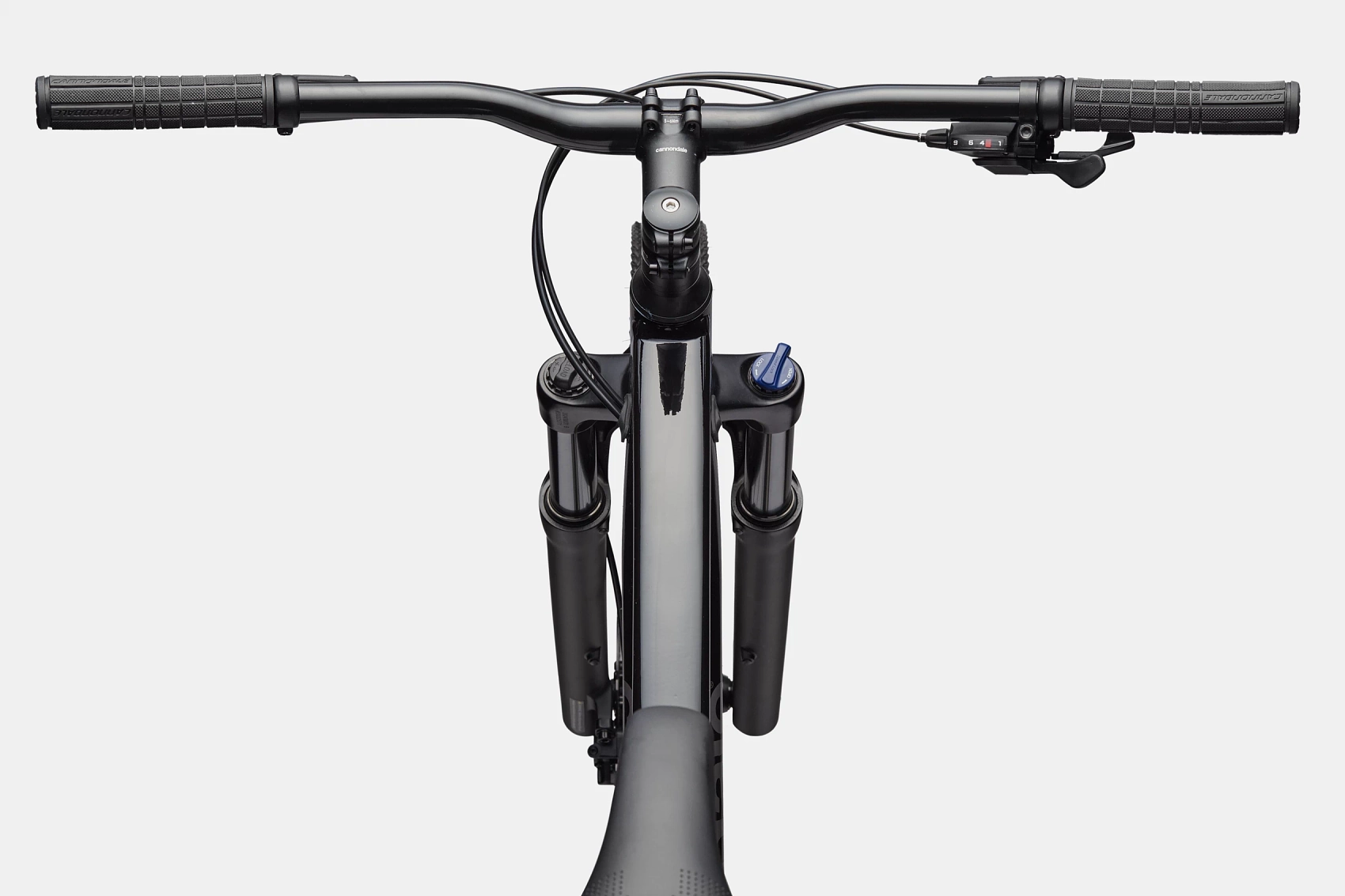

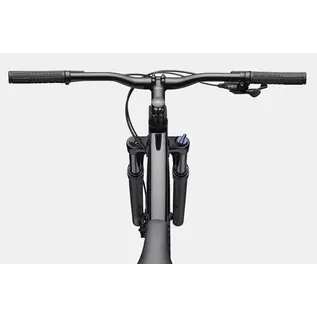

  • Handlebar
    Cannondale Riser, 6061 Alloy, 25mm rise, 8° sweep, 6° rise, 720mm
  • Stem
    Cannondale 4, 6061 Alloy, 31.8, 6°
  • Grips
    Cannondale
  • Saddle
    Cannondale Trail
  • Seatpost
    Cannondale 4, 6061 Alloy, 31.6

Please note that, based on component availability and other factors, specifications are subject to change without notice.
